bering-strait-project-eins

BERING STRAIT PROJECT



location: Bering Sea, between Alaska and Russia
project year: 2009
attended: Prof.Dipl.-Ing. Victor Mani
  Prof. Dr.-Ing. Thomas J├╝rges
  Wolf Mangelsdorf (Buro Happold)
type: Bridge, peace park - International Competition, Second Prize
announced by: The Foundation for Peace and Unification (FPU)
approved by: UIA- International Union of Architects



Exhibition of winners, July 2009 , Seoul Olympic Museum, South Korea



The Bering Strait of today is characterized by a harsh environment and enormous natural forces such as pack ice flow in the sea channel. Any typical bridging structure would have to withstand these forces and cause massive constructional efforts. The design of a crawling float bridge is interacting with these forces. By swimming on water and crawling over ice, the bridge is able to minimize the contact surface or rather all pushing forces. Linked by hydraulic systems the flexible pontoons and the stiff vehicle traffic deck can compensate the interactions between each other. Like modern wave power plants it also uses the constant movements to generate energy. Connected with a strong pulling cable in the center of each bridge deck module the float bridge is linked to 12 anchor modules to keep the bridge elements in position like a counter bearing. (...)





bering-strait-project-siteplan

siteplan



bering-strait-project-rising-land

rising land

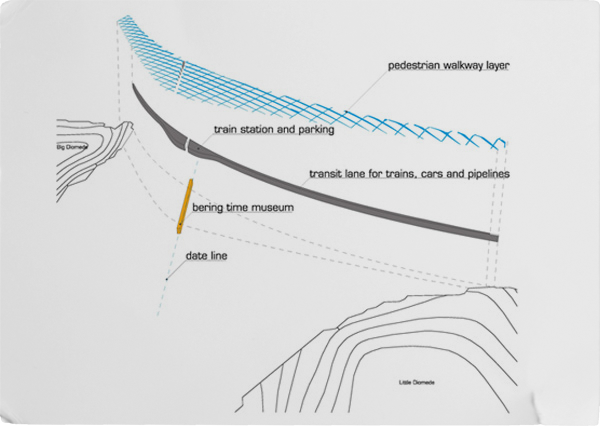

bering-strait-project-peace-park

peace park



bering-strait-project-crawling-float-bridge

crawling float bridge



bering-strait-project-crawling-float-bridge-section

crawling float bridge section



bering-strait-project-bridge-floating

bridge floating

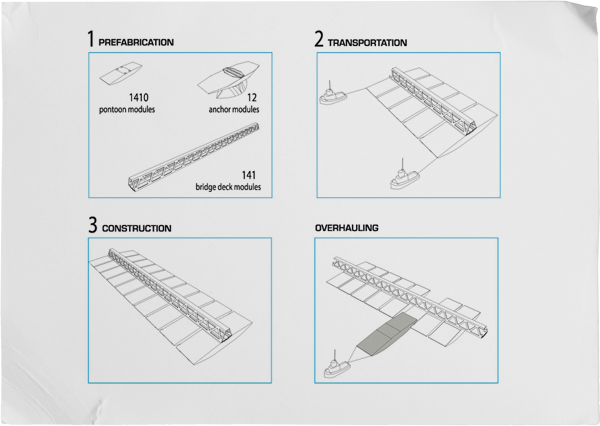

bering-strait-project-modules

modules- prefabrication, transportation, construction and overhauling
